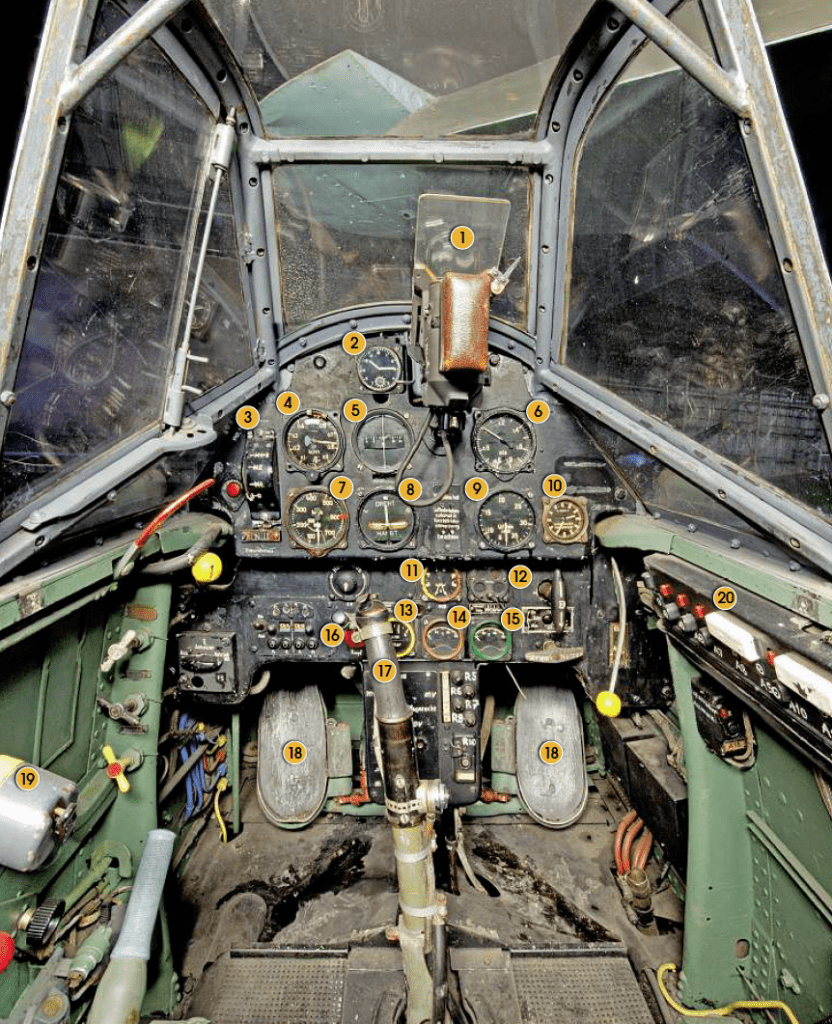

Messerschmitt Bf 109E cockpit

1 Revi gun sight

2 Clock

3 Magneto switches

4 Altimeter

5 Magnetic compass

6 Boost gauge

7 Air speed indicator

8 Turn and bank indicator

9 RPM gauge

10 Propeller pitch indicator

11 Fuel and oil pressure gauge

12 Undercarriage indicator

13 Fuel contents gauge

14 Oil temperature gauge

15 Coolant temperature gauge

16 Gun button

17 Control column

18 Rudder pedals

19 Throttle

20 Circuit breaker panel
